4-20mA Stainless Steel Diaphragm Industrial Pressure Sensor for Marine and Aviation Industries
BP93420IX Pressure Transmitter
Introduction of industrial pressure sensor transmitter:

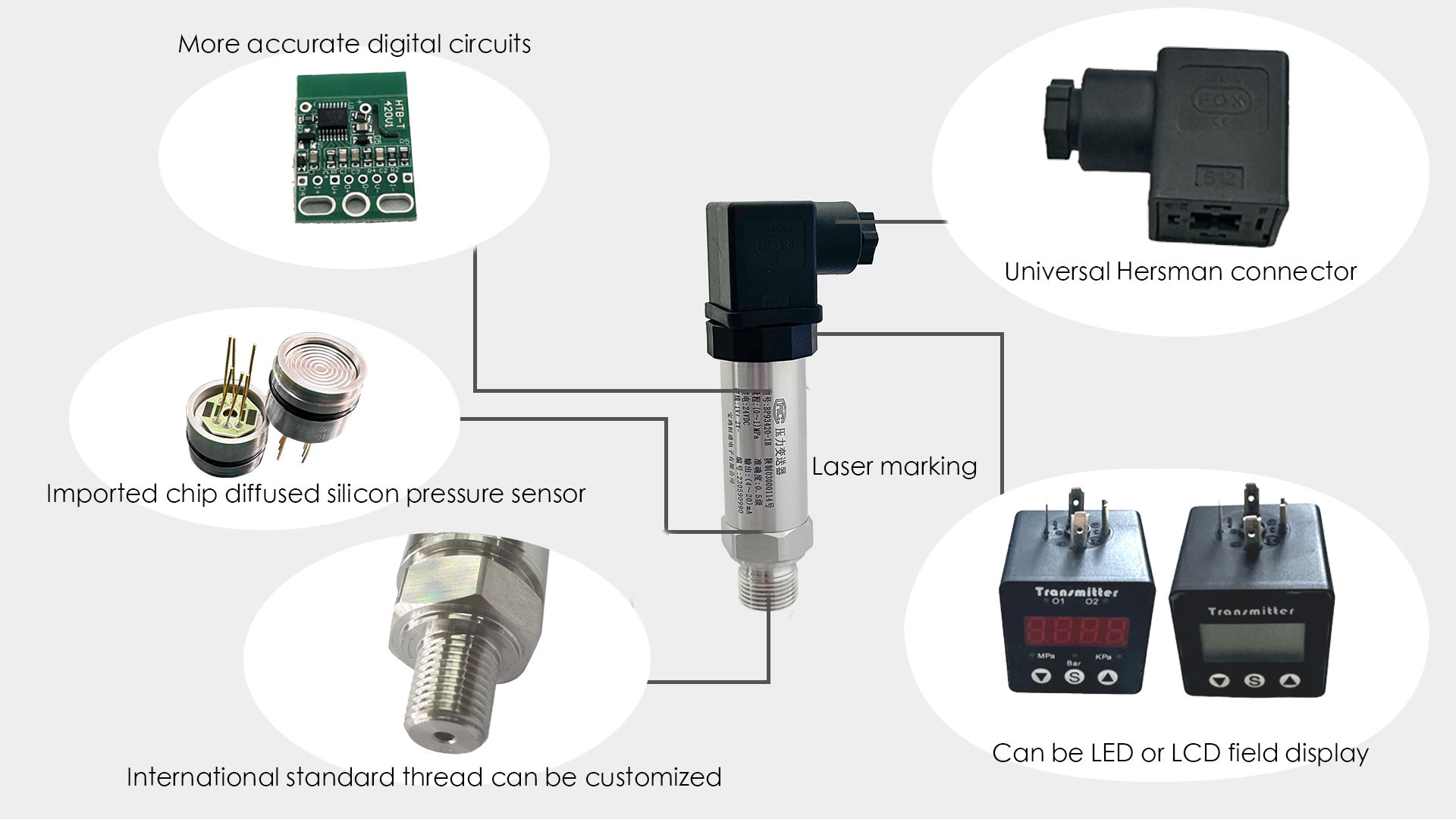

BP93420 - IX industrial silicon pressure sensor is divided into diffused silicon pressure transmitter core and capacitive pressure transmitter core. Diffused silicon pressure transmitter has the advantages of reliable operation, stable performance, easy installation and use, small size, light weight, high performance-price ratio, and can be widely used in various positive and negative pressure measurement
Product Features of industrial pressure sensor transmitter:
1. Wide measuring range, stainless steel structure, various forms of pressure interface.
2. Compact and lightweight design.
3. High precision, all stainless steel structure.
Applications of industrial pressure sensor transmitter:
1. Non-corrosive gas and liquid pressure measurement is compatible with stainless steel, the diaphragm is made of 316L stainless steel.
2. Applications in the Marine and aviation industries.
3. Used in industrial field processes, such as petroleum, chemical, metallurgy, power generation and hydrology.
4. For hydraulic and pneumatic control systems..
| Performance Parameters : |
| Measurement Range | -100kPa…0kPa ~ 10kPa…100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.25kg |
.
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
